Access Point (AP)

An Access Point (AP) provides wireless connectivity, enabling devices to connect to a network.

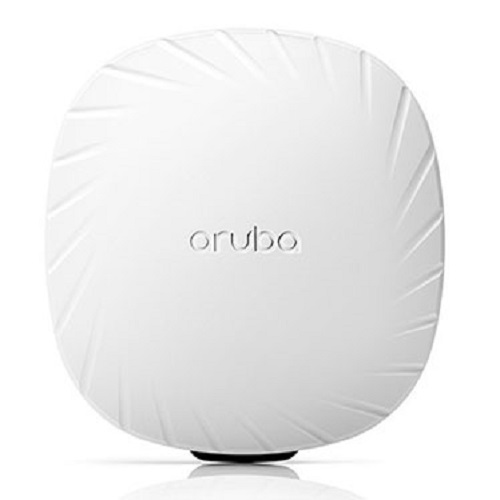

Aruba AP-503 WI-FI 6 Indoor Access Points
Aruba AP-503 WI-FI 6 Indoor Access Points
Aruba AP-503 WI-FI 6 Indoor Access Points

Aruba AP-503 WI-FI 6 Indoor Access Points

  • Main Features
  • Model: Aruba AP-503 WI-FI 6 Indoor Access Points
  • Connectivity: Indoor
  • WAN Port: 10/100/1000BASE-T
View Details UPCOMING

Specification

Specification Details
Brand Hewlett-Packard Enterprise (HPE)
Country of Origin U.S.A
Model Aruba AP-503 Wi-Fi 6 Indoor Access Points
AP Type Indoor
Wi-Fi Radio Specifications
  • Dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2x2 MIMO
  • Up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
  • 2.4GHz radio: Up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices
  • 5GHz radio: Up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices
Supported Radio Technologies
  • 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
  • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
  • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units
Wi-Fi Antennas
  • Integrated downtilt omni-directional antennas for 2x2 MIMO
  • Peak antenna gain of 1.7dBi in 2.4 GHz and 4.8 dBi in 5 GHz
  • Optimized for horizontal ceiling mounted orientation
Certifications
  • Wi-Fi CERTIFIED a, b, g, n, ac
  • Wi-Fi CERTIFIED 6
  • WPA, WPA2 and WPA3—Enterprise with CNSA
  • WMM, WMM-PS, Wi-Fi Agile Multiband
  • Passpoint (release 2)
Other Interfaces and Features
  • Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
  • 802.3az Energy Efficient Ethernet (EEE)
  • USB 2.0 host interface (Type A connector)
  • Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting
  • Visual indicators (two multi-color LEDs) for System and Radio status
  • Reset button: factory reset, LED mode control (normal/off)
  • Serial console interface (proprietary, micro-B USB physical jack)
  • Automatic thermal shutdown and recovery function
Power Sources
  • The AP supports Power over Ethernet (PoE)
  • Maximum power consumption: 10.9W
  • Maximum power consumption in idle mode: 4.7W
Wi-Fi Features
  • Transmit Beamforming
  • Passpoint Wi-Fi (Release 2) (Hotspot 2.0)
  • Dynamic Frequency Selection (DFS)
  • Maximum Ratio Combining (MRC)
  • Cyclic Delay/Shift Diversity (CDD/CSD)
  • Space-Time Block Coding
  • Low-Density Parity Check (LDPC)
Warranty Limited Lifetime Warranty
